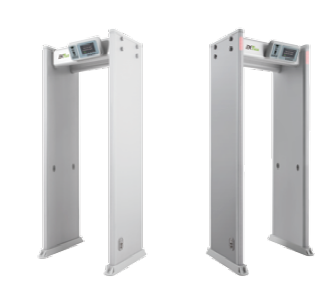

Very High Performance 33 Zones Walk Through Metal Detector(ZK-D4330)
Short Description:
33 detection zones 7”LCD HD display interface Remote control Simple installation and use In and out count Excellent anti-interference ability and stability Each zone has 300 adjustable sensitivity level Supports various language interface customization Higher accuracy and veri_cation speed Pass count and Alarm count memory function
Quick Details
Place of Origin – Shanghai, China
Brand Name – GRANDING
Model Number – ZK-D4330
Type – 33 Zones Walk Through Metal Detector
Features
33 detection zones
7”LCD HD display interface
Remote control
Simple installation and use
In and out count
Excellent anti-interference ability and stability
Each zone has 300 adjustable sensitivity level
Supports various language interface customization
Higher accuracy and veri_cation speed
Pass count and Alarm count memory function
Applications
Exhibition center , Electronic factory ,Prison ,Government office ,Hotel ,Finance
Advanced Structure
ZK-D4330 adapts beam structure, modular design, and hidden wiring design. This design not only is more convenient for installation, maintenance and logistics, but also enables higher security level.
Advanced robust and washable panels.
High durability, Anti-wearing and weather-proof structure.

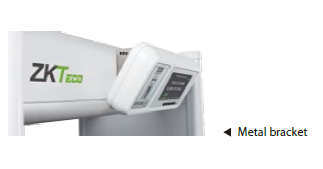

A stainless steel metal bracket with adjustable viewing angles provides better viewing angle and avoids light re_ection. In addition, the brightness of the back-light can be adjusted by the program to make the interface clearer.

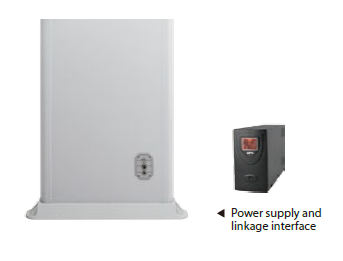

It adapts 15V low voltage power to protect the human body. The switch is equipped with an indicator light of power supply status. In addition, we also provide 4 and 8 hour backup
optional batteries.
A signal cable connector is delivered with the device. You can connect the signal cable connector to implement linkage between the turnstile and the walk through metal detector.
Optional Items
- IP65 function, keep deivce away from rain and dust.
- Universal wheel, make device move more easily.
- TCP/IP and WIFI communication.
- 45 detection zones.
- Integrated into X-ray software.
- Integrated into ZKBiosecurity3.0.

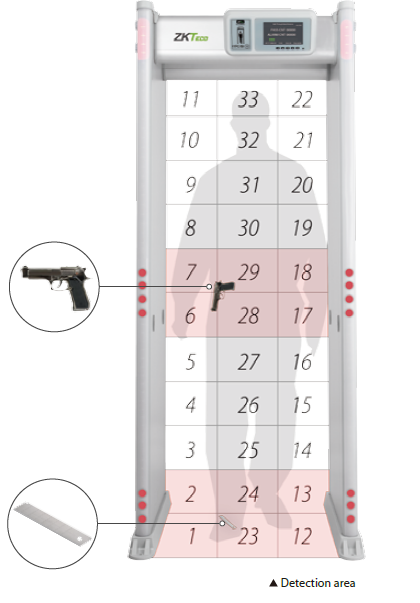

Detection Area
Supports multiple detection zone modes, including the modes of a single detectionzone, 6 detection zones, 11 detection zones, and 33 detection zones.
0-300 adjustable sensitivity levels of Zone and overall,0-255 adjustable sensitivity levels of Anti-shock.
From the shoe level to the crossbar, it accurately detects multiple metal objects simultaneously.
Both sides of the LED indicator can be clearly seated in the actual metal position. And depending on the size and shape of the metal,diferent alarm intensities are displayed on the control panel.
Accurate detection of weapons and contraband, while filtering watches, coins, belts, buttons and other harmless items.
Harmless to human body, heart pacemaker, pregnant women, magnetic floppy disk, recording tapes etc.
